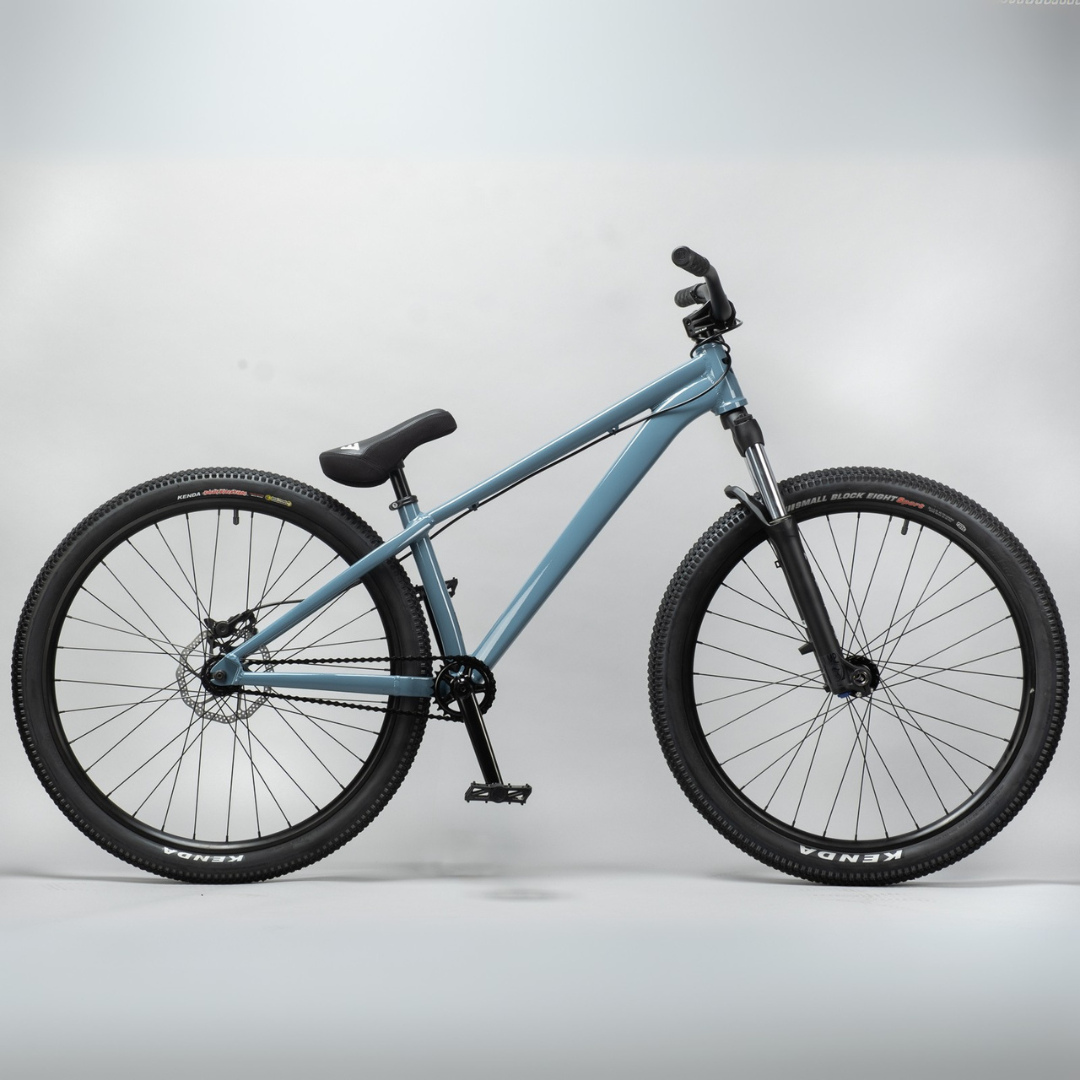

Mafia blackjack pro jump bike grey
Mafia blackjack pro jump bike grey
Regular price
£749.99 GBP
Regular price
Sale price
£749.99 GBP
Unit price
/
per
Geometry |
|
---|---|
(A) Top tube length | 561mm |
(B) Chainstay length | 385mm |
(C) Head angle | 69° |
(E) Seat tube angle | 70.5° |
(F) Standover | 710mm |
(G) Reach | 400mm |
(H) Stack height | 563mm |
(J) Fork offset | 41mm |
Specs |
|
Frame | Blackjack Pro |
Forks | Manitu Circus Comp 100mm |
Handlebars | Mafia Pro Jump 1 W762mm X H62mm |
Grips | Mafiabikes Lucky 6 150mm |
Headset | 1 1/8” -1.5" Tapered - Integrated - Sealed bearings |
Stem | Forged Frontload - Ø31.8 |
Pedals | 9/16” Mafiabikes plastic |
Saddle | Mafiabikes 1 Piece mid integrated alloy post - Ø25.4 |
SEATPOST | Ø25.4mm integrated with seat |
Seat Clamp | Ø35mm External |
Cranks | 170mm 4130 chromoly heat treated 19mm 8 spline 3 piece cranks |
Chainring/sprocket front | 25t Mafiabikes Steel Sprocket |
Sprocket/cassette rear | 10t Fully sealed Cassette |
Tyre Front | Kenda Small Block Eight 26" x 2.35" |
Tyre Rear | Kenda Small Block Eight 26" x 2.1" |
Front hub | 20mm x 110mm, sealed bearings, Disc |
Rear hub | Alloy shell, 3/8" axle, Fully sealed bearings, Disc |
Rim rear | 26" Double wall alloy 32h |
Rim front | 26" Double wall alloy 32h |
Brake Front | Mechanical disc brake 160mm rotor (supplied in roadkit) |
Brake Rear | Zoom - hydraulic disc brake 160mm rotor |
Tyres | Lagos Snakeskin 2 26"x2.5" (Front)/ Kenda kiniption 26"x2.3" (Rear) |
Tech |
|
Weight (lbs) | 30.200000 |
Frame weight | 2.0Kg |
BB type | 73mm ISO Euro (19mm) |
Headset type | 1 1/8” -1.5" tapered integrated |
Rear axle/hub spacing | 3/8" x 135mm axle |
Max tyre width rear | 66mm / 2.6" |
Seatpost/seatclamp | Ø25.4mm post with Ø31.8 shim, Ø35 seatclamp |
Front axle/hub spacing | 20 x 110 Thru axle |
Frame construction and details | 6061 T6 Alloy .Forged dropouts .Integrated chain tensioners .CNC headtube .IS Disk mount .Bespoke Hydroformed tubes .ISO Threaded BB |
Road kit | Included |
Fork construction | Straight steerer |
